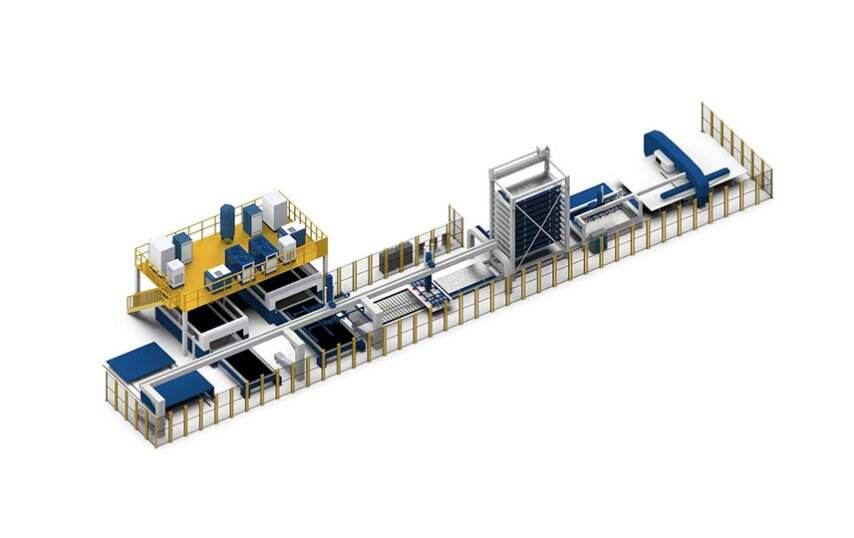

Frame

The frame adopts an “O” shaped (closed) structure and is welded with steel plates. The steel plates have undergone strict material analysis to ensure the quality. It is designed according to the scientific movement mechanics. The main board and internal stiffeners are reasonably designed to ensure the overall stability of the frame.

Drive Mechanism

The turbine worm reducer and double-chain drive are used to drive the cutter head. The reducer is installed inside the frame to enhance the transmission stability and displacement accuracy. The cutter head is designed with an enlarged cylinder seat and two cylinders, which has can run synchronously and position stably and accurately to avoid the wear of the side sleeve of the cutter head.

Punching Assembly

High-power hollow shaft servo motor is used to output power and the crankshaft is connected to the servo motor as a whole to avoid the misalignment and delay caused by too many connections. The direct-drive punching operation is featured by high stability and fast response speed, and the swing method is adopted. The swing angle is automatically selected according to the punching stroke and process to greatly improve the efficiency.

Feeding Mechanism

The Y-axis is designed with a one-piece connecting plate and the X-axis square tube beam is designed with two guide rails. After tempering treatment, the self-weight of the components is reduced, the operation is more stable and the positioning is more accurate. The guide rails and lead screws are imported from Taiwan and they are assembled according to strict and scientific assembly process. The company is also equipped with advanced laser collimator and laser interferometer to ensure assembly accuracy and effectively improve feeding accuracy and operating speed.
